NH3 (Anhydrous Ammonia) Hose End Valve Assemblies
Continental NH3 (anhydrous ammonia) hose end valve assemblies are factory assembled and tested for use in transfer hose assemblies for both liquid and vapor service and serve as a quick shutoff valve. Continental NH3's hose end valves feature bleeder valves installed with a 45 degree hand wheel on all of products except for A212 productl ine for high flow control. These valve assemblies are a combination of Continental's rugged ductile iron high flow angle or globe valves, full flow 1-3/4" and 2-1/4" ACME thread couplings, either standard length or safety extension, and A-411 stainless steel bleeder valve with the exclusive anti-flash seal ring.
Types of Hose End Valve Assemblies
Hose End Valve Assemblies
Ordering Information | ||||||||
---|---|---|---|---|---|---|---|---|
Catalog Number |
Pipe Thread Size |
Acme Thread Size |
Style |
Service |
Coupling Number |
Product Video | Product Manual | |
B-211 | 3/4" | 1-3/4" | Angle | Liquid or Vapor | B-521 | - | - | |
B-213 | 3/4" | 1-3/4" | Globe | Liquid or Vapor | B-521 | - | - | |
B-212 | 1" | 1-3/4" | Angle | Liquid or Vapor | B-521B | - | - | |
B-214 | 1" | 1-3/4" | Globe | Liquid or Vapor | B-521B | - | - | |
B-211-L | 3/4" | 1-3/4" | Angle | Liquid or Vapor | A-571 | - | - | |
B-213-L | 3/4" | 1-3/4" | Globe | Liquid or Vapor | A-571 | - | - | |
B-212-L | 1" | 1-3/4" | Angle | Liquid or Vapor | A-577-B | - | - | |

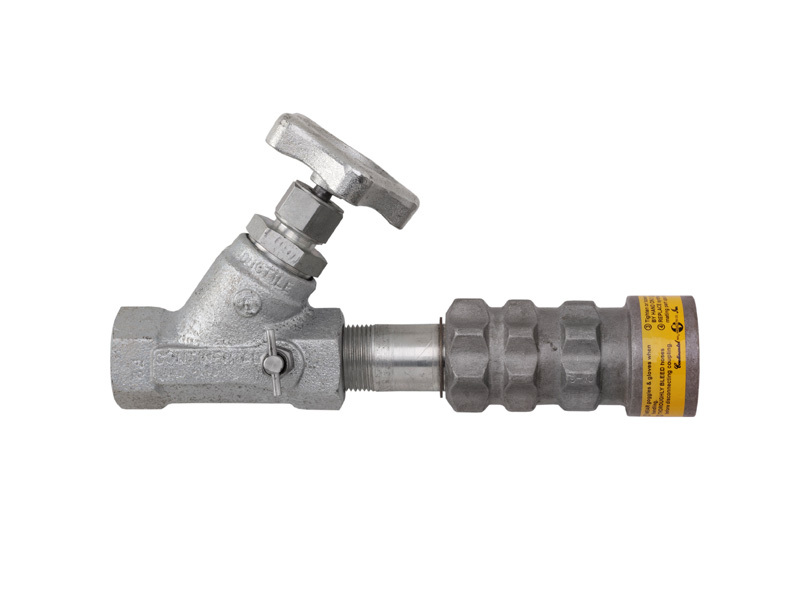

B-214-L | 1" | 1-3/4" | Globe | Liquid or Vapor | A-577-B | - | - | |
A-215-L | 1-1/4" | 1-3/4" | Globe | Liquid or Vapor | A-577C | - | - | |

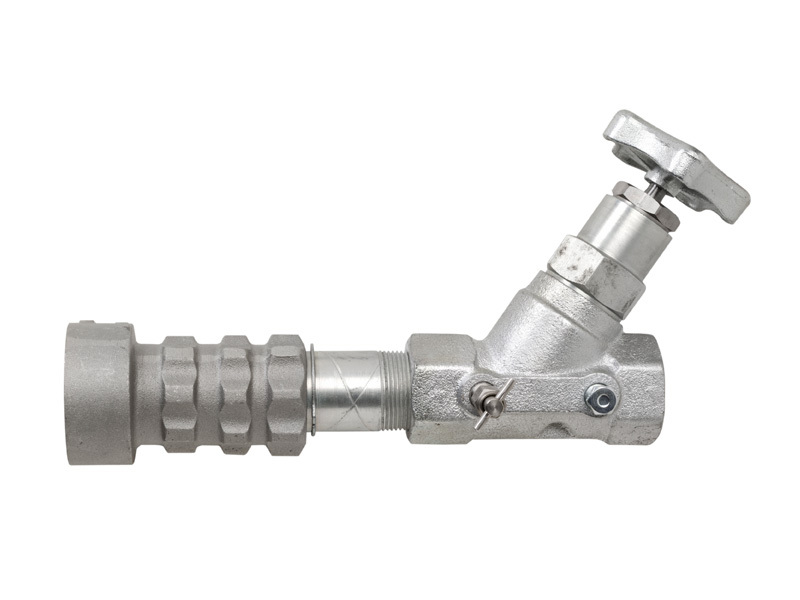

A-216-L NEW |
1-1/4" | 2-1/4" | Globe | Liquid or Vapor | A-577-D NEW |
- | - | |

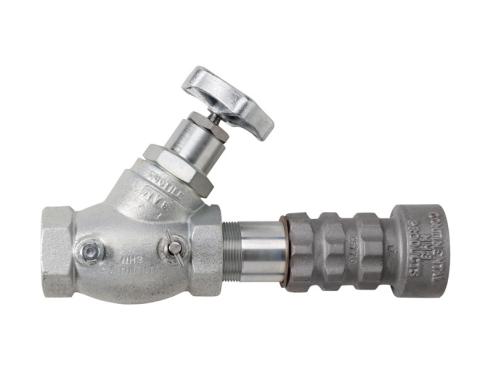

A-217-L NEW |
1-1/2" | 2-1/4" | Globe | Liquid or Vapor | A-577-G NEW |
- |
Please contact Continental NH3 for product manuals for B-Series 211, 212, 213, 214, 211L, 212L, 214L as well as A-215L & A-216L.
Click images to enlarge.
Click product number to view image.

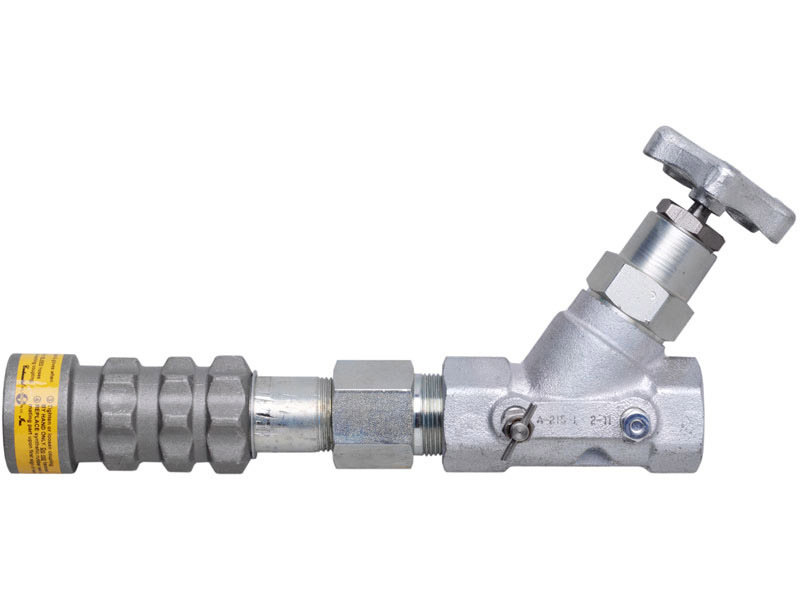

A-215-L High Flow Globe Valve
The A-215-L Globe Valve promotes maximum flow in a compact design. The 1-1/4 FPT Inlet x 1-3/4 Acme coupling enables the user to take full advantage of the increased flow capacity of 1-1/4" hoses while at the same time eliminating the flow restriction produced by a reducer bushing required by other valves.
Click images to enlarge.
Click product number to view image.
