Nurse Tank Liquid Withdrawal & Combination Valves

CAUTION: WE OFFTER 2 STYES OF TANK VALVES, TOP MOUNT OR OPEN YOKE AND BOTTOM MOUNT OR CLOSE YOKE. WHEN ORDERING PLEASE MAKE SURE TO PURCHASE THE CORRECT MOUNTED VALVE. IF YOU ARE UNSURE OF WHAT TO PURCHASE PLEASE GIVE US A CALL.

Features:

Stainless steel stem - precision ground and polished.
Spring loaded "Teflon" stem packing - positive seal with pressure tested at 400 psi.
Optional double coated, zinc plated and painted for extra protection.
Excess flow check assembly of all valves individually inspected and checked after assembly to assure accurate and dependable operation.
Spring loaded packing for a free spinning hand wheel.

Request Information

Types of Liquid Withdrawal Valves:

B-1205 Series Valves

Vapor, Filler & Liquid Withdrawal Valves

A-1505 Series Valves

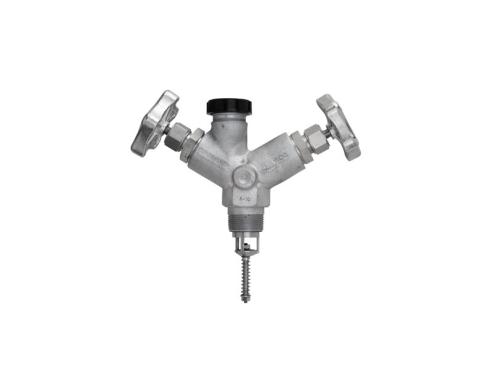

B-1205 Series Valve

Fill nurse tanks up to 80% faster using the newly reimagined B-1205 and the all-new A-1505 multiport combination valve. Install the multiport valve into the normal withdrawal valve port so you can withdrawal to your tool bar but also hook up an additional fill hose to the secondary acme port to fill the nurse tank with an additional fill line. A normal nurse tank is configured with one liquid withdrawal port and two vapor ports. When our multiport valve is installed into the withdrawal port of the nurse tank that allows for a total of three acme threaded connections so you can attach two fill hoses, one on the normal fill valve, and a second one on the new multiport valve and your vapor return on the third. To take advantage of this, an additional fill line will need to be added to the riser. This can be done by installing an additional tee at the outlet of the liquid line with appropriate riser valve and breakaways.

Ordering Information
Part Number	Tank Connection Size	Outlet Size	Excess Flow Check Rating	Side Port & Feature	Product Manual
B-1205	1-1/4" MPT	1” FPT & 1-3/4” ACME	45 GPM	NONE
B-1205-37	1-1/4" MPT	1” FPT & 1-3/4” ACME	37 GPM	NONE

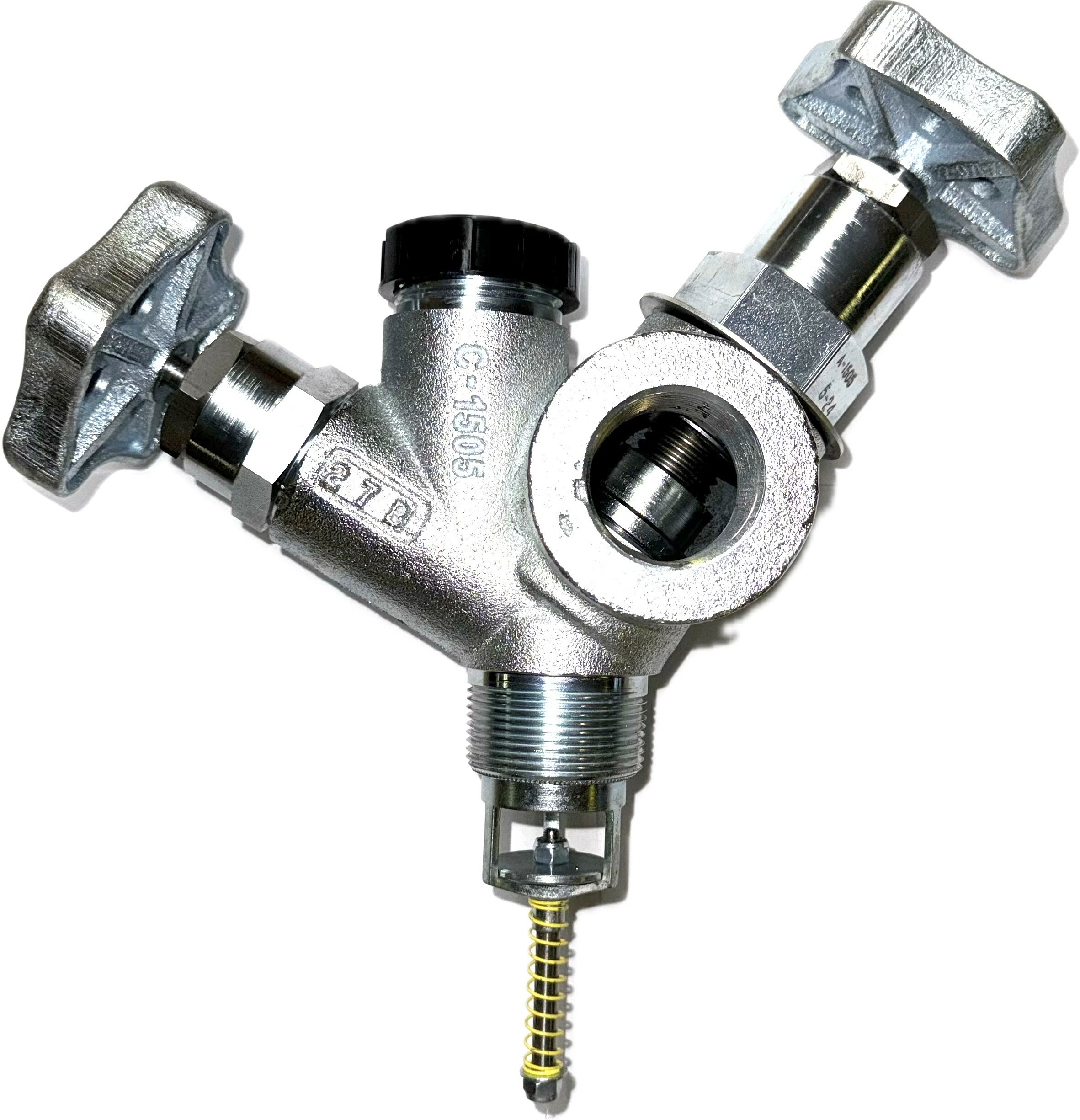

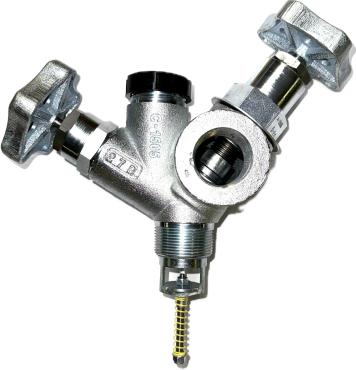

A-1505	1-1/2" MPT	1-1/4" FPT & 1-3/4" ACME	60 GPM	1/4" SIDE PORT

Click images to enlarge.
Click product number to view image.

B-1205


Ready to Purchase? Find a Distributor

Request Information

Vapor, Filler & Liquid Withdrawal Valves

Withdrawal valves are available in a wide variety of connections, from 1-1/4" and 1-1/2" MPT tank connections with 1", 1-1/4" or 1-1/2" FPT outlets as well as 2-1/4" ACME male outlets. A 1/4" FPT outlet port is also provided for the installation of a desired accessory. This particular valve can be used for vapor, filler or liquid withdrawal.

************PLEASE NOTE THAT THE REPAIR KTS BELOW ARE FOR THE NEW STYLE BONNET, IF YOU HAVE THE OLD STYLE BONNET THAT WILL TAKE THE A-2212-RK REPAIR KIT

Ordering Information
Part Number	Tank Connection Size	Outlet Size	Excess Flow Check Rating	Side Port & Feature	Repair kit	Product Video	Product Manual	Product Drawing
B-1206-E	1-1/4" MPT	1" FPT	42 GPM	1/4" Plug	B-22H-RK	-
B-1206 EB	1-1/4" MPT	1" FPT	42 GPM	A-400 Relief	B-22H-RK			-
B-1206 EBP	1-1/4" MPT	1" FPT	42 GPM	By-Pass Stem	B-22H-RK			-

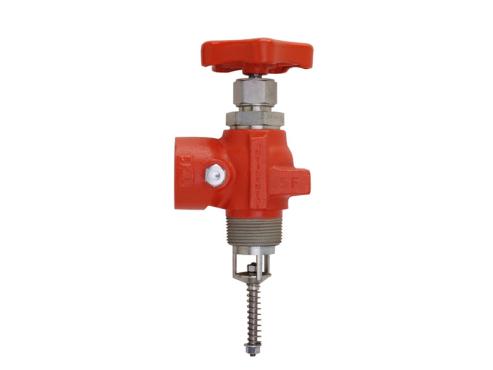

B-1206-F	1-1/4" MPT	1-1/4" FPT	42 GPM	1/4” Plug	B-22H-RK	-
B-1206 FB	1-1/4" MPT	1-1/4" FPT	42 GPM	A-400 Relief	B-22H-RK			-
B-1206 FBP	1-1/4" MPT	1-1/4" FPT	42 GPM	By-Pass Stem	B-22H-RK			-

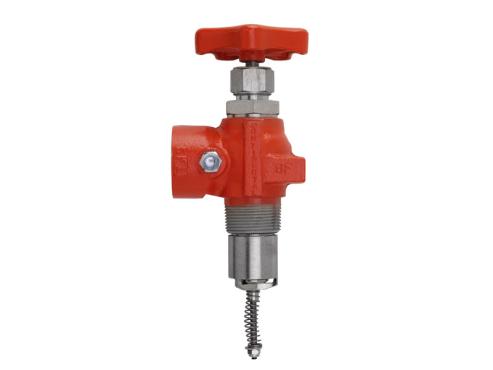

B-1206-EBW	1-1/4" MPT	1" FPT	45 GPM	Bottom Withdrawal	B-22H-RK	-		-
B-1206-FBW	1-1/4" MPT	1-1/4" FPT	45 GPM	Bottom Withdrawal	B-22H-RK	-		-
A-1406-F	1-1/4" MPT	1-1/4" FPT	45 GPM	High Flow Design, 1-1/4" Seat	A-25H-RK	-		-

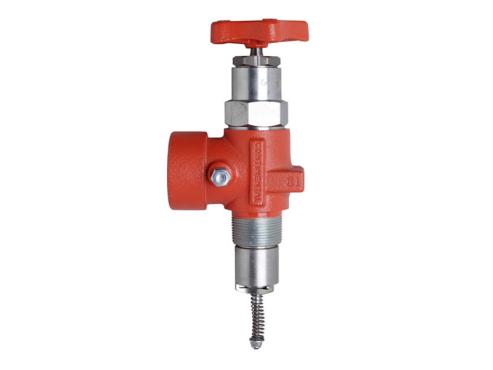

A-1406-FBW	1-1/4" MPT	1-1/4" FPT	45 GPM	High Flow Design Bottom Withdrawal	A-25H-RK
A-1406-FBV	1-1/4" MPT	1-1/4" FPT	45 GPM	20% in tractor speed	A-25H-RK
A-1406-G NEW	1-1/4" MPT	1-1/2" FPT	45 GPM	High Flow Design 1-1/2" Outlet	A-25H-RK	-		-
B-1205	1-1/4" MPT	1-1/4" MPT & 1-3/4" ACME	42 GPM	DUAL OUTLET PORTS WITH 2 HANDLES	B-22H-RK	-		-
A-1507-F	1-1/2" MPT	1-1/4" FPT	60 GPM	High Flow Design	A-25H-RK
A-1507-F-45 NEW	1-1/2" MPT	1-1/4" FPT	45 GPM	High Flow Design	A-25H-RK	-		-

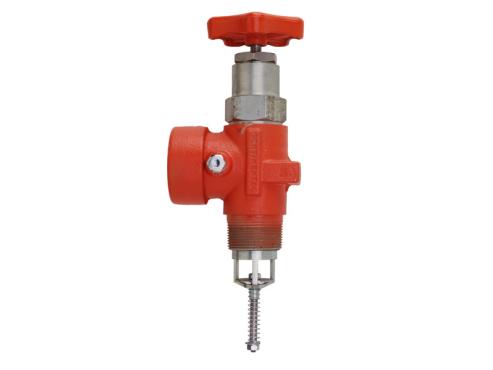

A-1507-G NEW	1-1/2" MPT	1-1/2" FPT	60 GPM	High Flow Design 1-1/2"	A-25H-RK			-
A-1507-GBW	1-1/2" MPT	1-1/2" FPT	60 GPM	High Flow Design BOTTOM WITHDRAWAL	A-25H-RK	-		-
A-1809-BFV NEW	1-1/2" MPT	1-1/2" FPT	60 GPM	FULL PORT 1-1/2" SEAT W/ LARGE EXCESS FLOW	A-1809-RK
A-1708-GA NEW	1-1/2" MPT	2-1/4" ACME	60 GPM	NEW DESIGN FOR END MOUNT TANK	A-25H-RK	-	-	-
A-1708-F NEW	1-1/2" MPT	1-1/4" ACME	60 GPM	GREAT FOR END MOUNTED NURSE TANK CONNECTIONS	A-25H-RK		-
