NH3 (Anhydrous Ammonia) Auto Rate Control

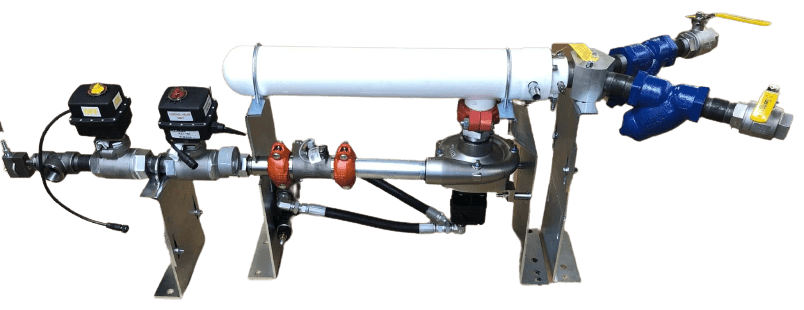

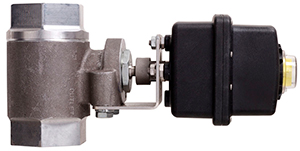

The A-SF-3000VPJ-KIT, 75 GPM pump driven heat exchanger kit incorporates a high capacity hydraulic driven pump that energizes the ammonia to boost it through the system when temperatures are cold and tank pressures are low. Kit comes complete with heat exchanger, 2" x 1-1/2" hydraulic driven pump, electronic hydraulic switch, hydraulic connection horses, mounting brackets, control and shut off valve as well as all the plumbing required to put it all together. All that’s required is a controller and wire harness. Our new systems uses our new 1-1/4” full port 120 degree control valve, A-CBVT-125-CT, that increases your control accuracy by having 120 degrees of turn unlike other 90 degree control valves and being it’s a full port 1-1/4” you can really put on the juice when you need and still be able to handle the lower flow requirements that small grain growers or side dress growers need. The A-SF-3000VPJ-KIT gives you a complete system, easy installation, higher capacity and more accurate control of your NH3.

Features:

• 55 GPM with 1-1/4” hoses at 100 psi and 41 GPM at 50 psi
• 75 GPM with 1-1/2” hoses at 100 psi and 55 GPM at 50 psi

KIT INCLUDES THE FOLLOWING:

• Cooler
• Mounting brackets
• Pump
• Hydraulic switch with cable and connector hoses
• 120-degree control valve
• Electric shut off valve
• Raven Victaulic flow meter
• Inlet Y consolidator, y strainers, ball valves, and all fittings necessary to plumb it all together

Click images to enlarge.
Click product number to view image.

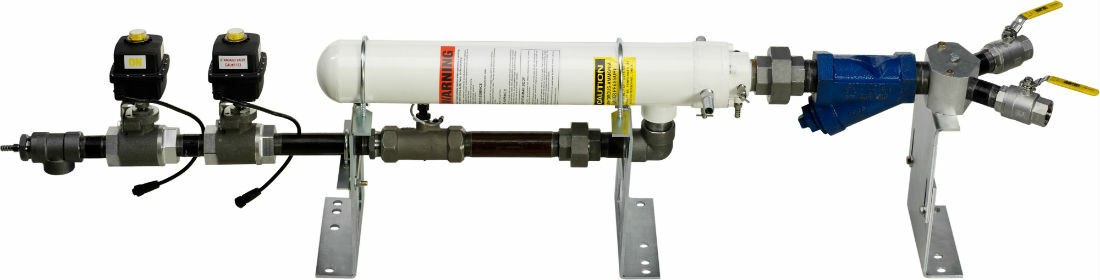

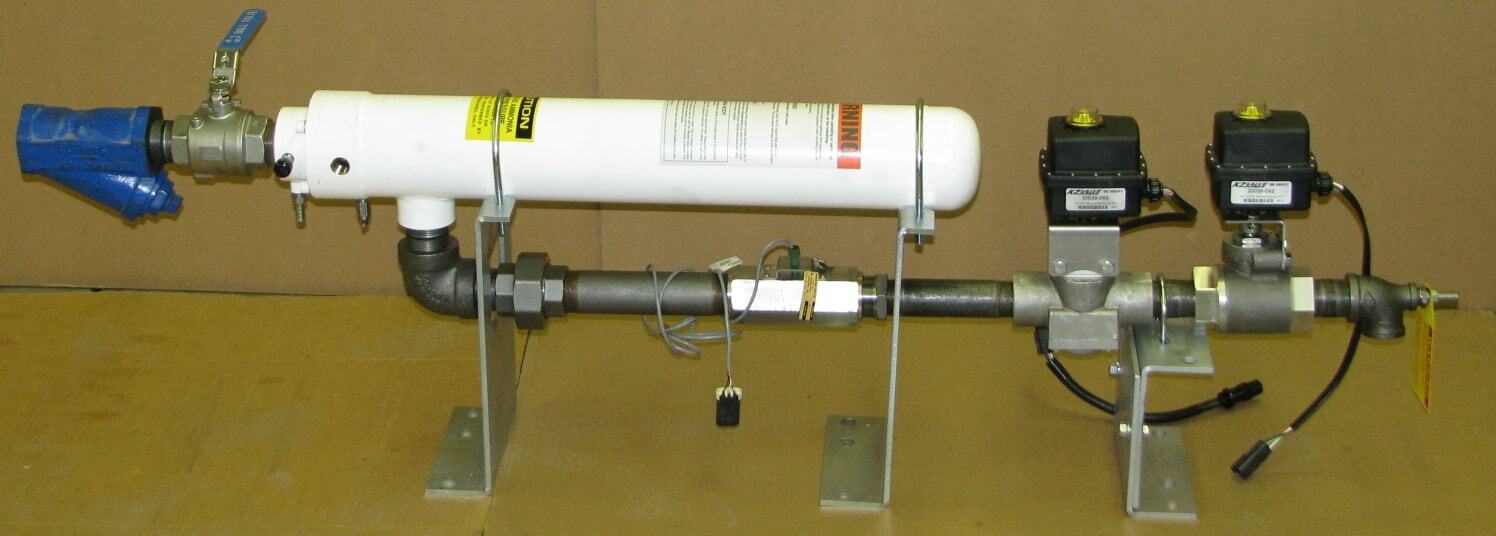

The A-SF-3000GHY2-KIT, 75 GPM heat exchanger kit come complete with heat exchangers, mounting brackets, control and shut off valve as well as all the plumbing required to put it all together. All that’s required is a controller and wire harness. Our new kit makes it easier than ever to upgrade your NH3 cooler equipment. Our new systems uses our new 1-1/4” full port 120 degree control valve, A-CBVT-125-CT, that increases your control accuracy by having 120 degrees of turn unlike other 90 degree control valves and being it’s a full port 1-1/4” you can really put on the juice when you need and still be able to handle the lower flow requirements that small grain growers or side dress growers need. The A-SF-3000GHY2-KIT gives you a complete system, easy installation, higher capacity and more accurate control of your NH3.

Features:

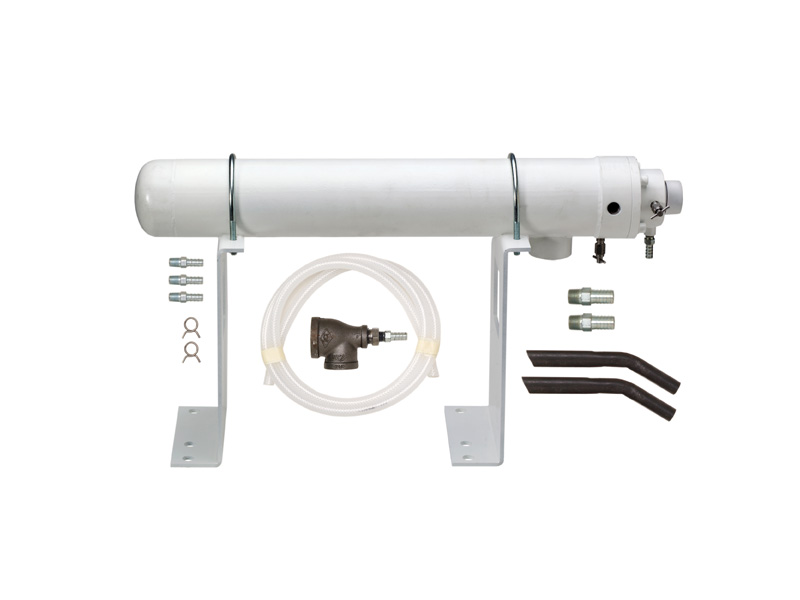

• Heat exchanger with Y-adaptor, support bracket and y-strainer available separately, A-SF-3000GHY2
• Mounting brackets and all plumbing included
• 55 GPM with 1-1/4” hoses at 100 psi and 41 GPM at 50 psi
• 75 GPM with 1-1/2” hoses at 100 psi and 55 GPM at 50 psi

KIT INCLUDES THE FOLLOWING:

• 75 GPM cooler complete with required fittings
• Mounting brackets
• Inlet Y fitting consolidator
• Inlet y-strainers and ball valves
• Electric control and shut off valves with KZ motors1-1/2” flow meter
• All pipe fittings

Click images to enlarge.
Click product number to view image.
