ACME NH3 (Anhydrous Ammonia) Adapters
Thread Adapters
Continental ACME NH3 (Anhydrous Ammonia) Thread Adaptors are available in a wide range of pipe thread sizes. They are machined from zinc-plated steel to resist rust and corrosion and to insure maximum durability. Precision-machined threads provide fast, smooth engagement with mating connection. Ammonia-resistant synthetic gasket is included with each adaptor.
Type I Adaptors
Click image to enlarge.
Click product number to view product.
| Type I Ordering Information | ||||||
|---|---|---|---|---|---|---|
| ACME Thread | Male Pipe Thread Size | Catalog Number | Length | Gasket Number | Nylon Dust Cap | Iron Dust Cap |
| 1-3/4" | 1/2" | A-524A | 2-1/4" | 22-71F | 22-63F | A-529 |
| 1-3/4" | 3/4" | A-524 | 2-1/4" | 22-71F | 22-63F | A-529 |

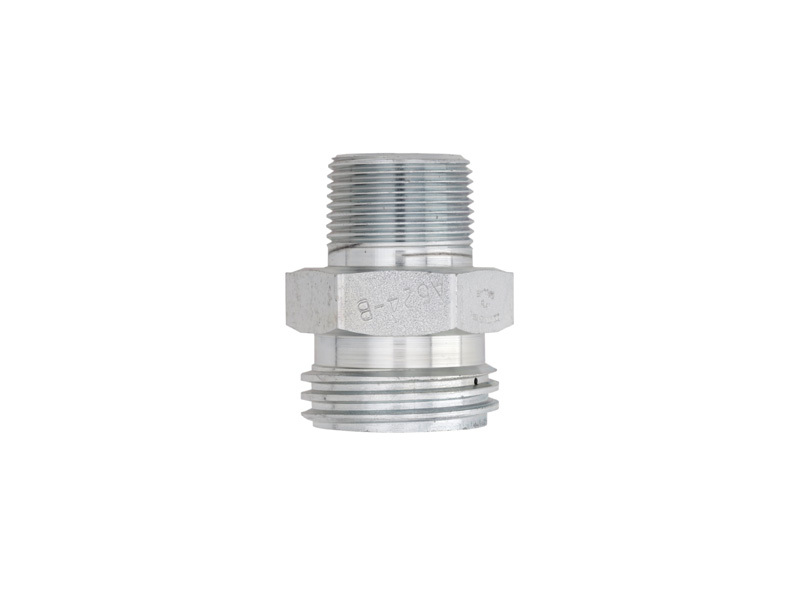

| 1-3/4" | 1" | A-524B | 2-1/4" | 22-71F | 22-63F | A-529 |
| 1-3/4" | 1-1/4" | A-524C | 2-1/2" | 22-71F | 22-63F | A-529 |

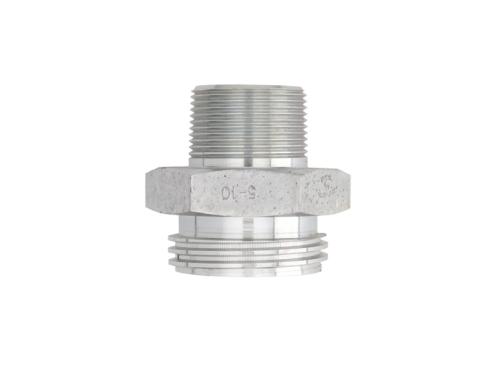

| 2-1/4" | 1-1/4" | A-532 | 2-3/4" | 532-2 | - | A-535 |
| 2-1/4" | 1-1/2" | A-533-G | 2-3/4" | 532-2 | - | A-535 |
| 2-1/4" | 2" | A-534 | 2-3/4" | 532-2 | - | A-535 |

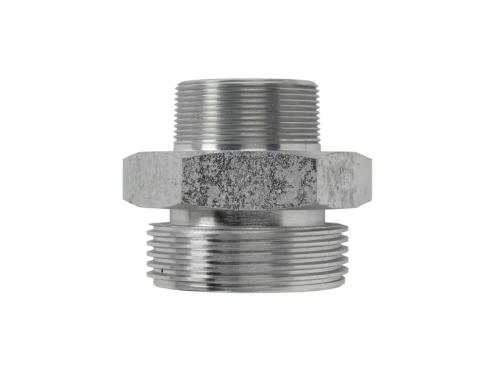

| 3-1/4" | 2" | A-540 | 3-1/4" | 540-2 | - | A-545 |
| 3-1/4" | 3" | A-542 | 3-3/4" | 540-2 | - | A-545 |
Type II Adaptors
Click image to enlarge.
Click product number to view product.
| Type II Ordering Information | ||||||
|---|---|---|---|---|---|---|
| ACME Thread | Female Pipe Thread Size | Catalog Number | Length | Gasket Number | Nylon Dust Cap | Iron Dust Cap |
| 1-3/4" | 1/2" | A-1103 | 1-1/4" | 22-71F | 22-63F | A-529 |
| 1-3/4" | 3/4" | A-525 | 1-1/4" | 22-71F | 22-63F | A-529 |
| 1-3/4" | 1" | A-525B | 1-1/4" | 22-71F | 22-63F | A-529 |
| 2-1/4" | 1-1/2" | A-533-GF | 1-1/4" | 532-2 | - | A-535 |

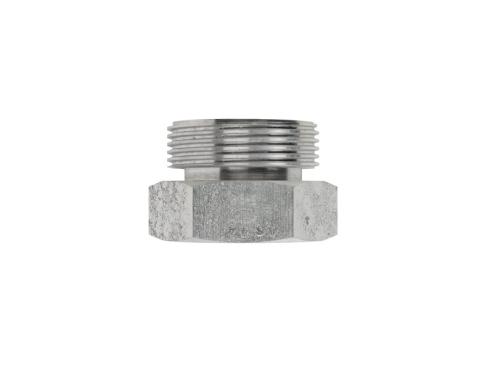

| 3-1/4" | 2" | A-544 | 2-1/2" | 540-2 | - | A-545 |
ACME Thread Fittings
Click image to enlarge.
Click product number to view product.
| Ordering Information | ||
|---|---|---|
| Catalog Number | Male ACME | Female ACME |
| A-580 | 1-3/4" | 1-3/4" |
| A-582 | 1-3/4" | 2-1/4" |
| A-584 | 1-3/4" | 3-1/4" |
| A-586 | 2-1/4" | 1-3/4" |
ACME Dust Caps
Click image to enlarge.
Click product number to view product.
| Ordering Information | ||
|---|---|---|
| ACME Thread | Description | Catalog Number |

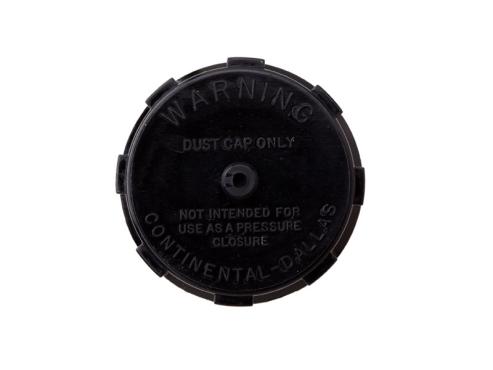

| 1-3/4" | Nylon Cap | 22-63-F |

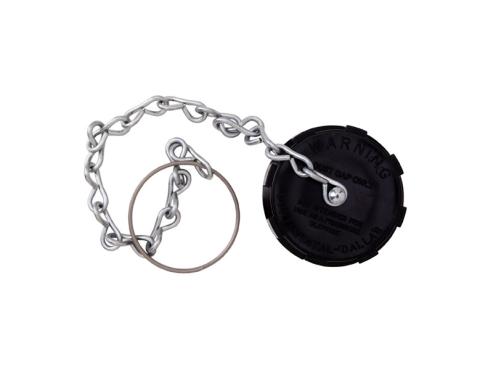

| 1-3/4" | Nylon Cap w/Chain | 22-63-FC |
| 1-3/4" | Iron Cap | A-529 |
| 1-3/4" | Iron Cap w/Chain | A-529-C |
| 2-1/4" | Iron Cap | A-535 |

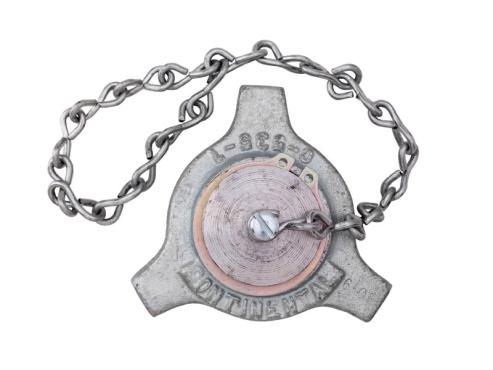

| 2-1/4" | Iron Cap w/Chain | A-535-C |
| 3-1/4" | Iron Cap | A-545 |

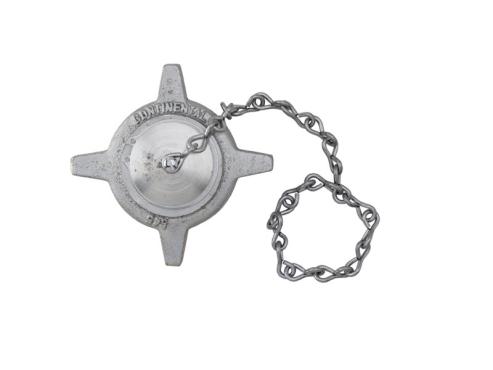

| 3-1/4" | Iron Cap w/Chain | A-545-C |
ACME Hose Hanger Adaptors
Click image to enlarge.
A-524WB is a 1-3/4" ACME Threaded adaptor and the A-532-WB is a 2-1/4" ACME Threaded adaptor. Both are used for bolting or welding to the tank roll-over guard to provide a convenient means of securing the transfer hose during transit or storage. A 1/2" bolt and lock washer are included.
Caution: Not suitable for use as a plug.
