NH3 (Anhydrous Ammonia) Globe & Angle Valves

Angle Valves & Globe Valves

nh3 globe and angle valves

Click image to enlarge.

Our NH3 (anhydrous ammonia) globe valves and angle valves incorporate maximum flow efficiency for excellent performance by regulating or controlling the flow or through throttling. Maximum flow efficiency makes the "Max-Flow" valves ideal for use on nurse tank and field storage tanks. Rugged ductile iron comprises the global valve bodies which come with 1/4" NPT port to allow for installation of an accessory. Long, trouble-free service is assured by a precision ground stainless steel stem, Teflon "V" packing, and a field-proven swivel poppet with nylon seat.

  • Stainless Steel Stem - precision ground and polished.
  • Field-proven nylon seat in swivel poppet retainer.
  • Spring loaded'Teflon' V-ring stem packing for positive seal & free spining hand wheel.
  • Ductile iron body - 400 lb. WOG.
  • Component parts interchangeable with all A-1200 Series Valves.

globe angle valves measurements

Click product number to view product.

* Repair kit for A-2525 valves dated after 1/1/94.

Ordering Information

Ordering Information
Catalog
Number

Type
Thread
Size
Dimensions Repair
Kit
A B

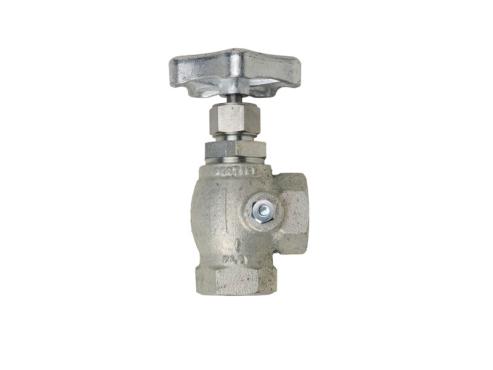

B-1250 Angle 1" - - A-2212-RK

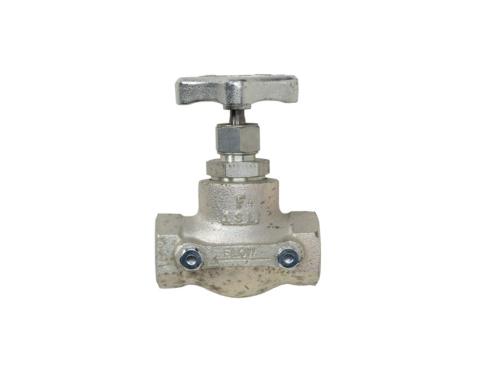

B-1650 Globe 1" - - A-2212-RK
B-1350 Globe 45° Hand Wheel 1" - - A-2212-RK
A-2425-H Angle 1-1/4" 5" 2-3/8" A-2550H-RK

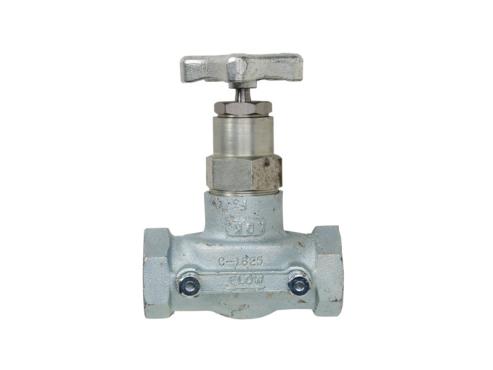

A-1625 Globe 1-1/4" - - A-25H-RK

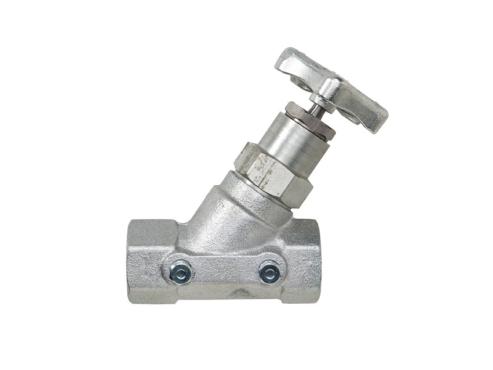

A-2525-H Globe 45° Hand Wheel 1-1/4" 5-3/4" 5-1/4" A-25H-RK
A-2450-H Angle 1-1/2" 5" 2-1/2" A-2550H-RK

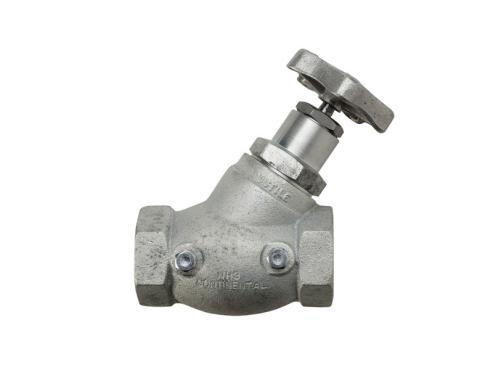

A-2550-H
NEW
Globe 45° Hand Wheel 1-1/2" 5-3/4" 5-1/4" A-2550H-RK

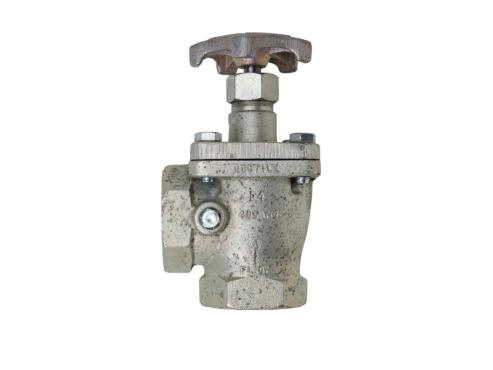

A-2600 Angle 2" 7" 2-3/4" A-26-RK
A-2700 Globe 45° Hand Wheel 2" 7-3/4" 6" A-26-RK
A-2800 Globe 45° Hand Wheel
3" - - A-28-RK

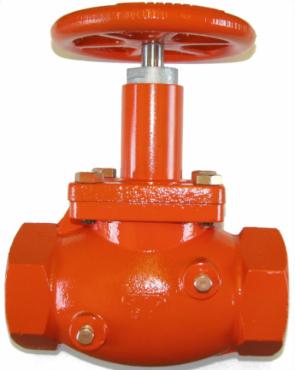

A-2900 Globe 90° Hand Wheel
3" - - A-28-RK
