A-QOVM-125FF Fast Fill Minimum Bleed Valve

Continental NH3 Products is proud to introduce our new fast fill minimum bleed riser fill valve. We increased the outlet hole by 75 percent, from 3/4" to 1" to match the inlet hole in the nurse tank valve. The minimum bleed feature allows the users to bleed the connection by loosening the coupling instead of using a bleeder valve. This is achieved by locating the seat down by the end of the coupling. This unique feature is very helpful on risers when filling nurse tanks. We use stainless steel for the bonnet, stems, poppet, and coupling nozzle for extended life.

Features:

  • 75% larger outlet hole
  • Up to 30 to 40 percent faster fill times
  • 1-1/4" connection size
  • Flat rubber seat makes for excellent seal
  • Stainless steel bonnet, stem, poppet, and coupling nozzle
  • Large handle
  • Rugged ductile iron body
Ordering Information
Part Number Inlet Size ACME Size Product Video Product Manual Product Drawing
A-QOVM-100 1" 1-3/4" - -
A-QOVM-125 1-1/4" 1-3/4"
A-QOVM-125FF  1-1/4"   1-3/4"
Click images to enlarge.
Click product number to view image.
Ready to Purchase? Find a Distributor
Request Information

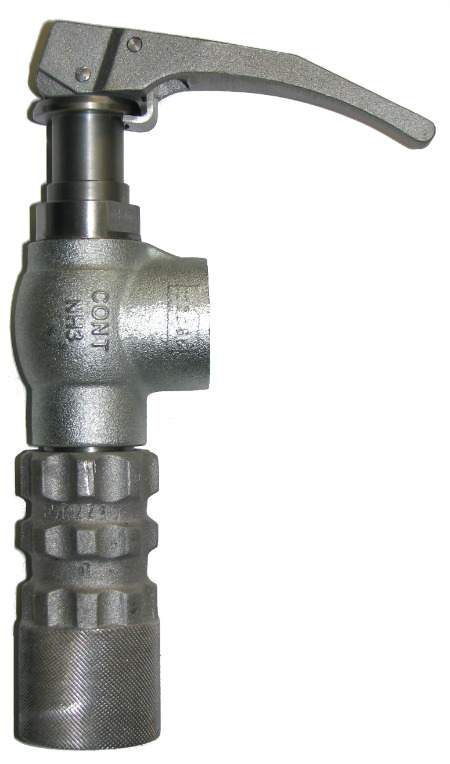

A-QOVM-125 & A-QOVM-100 Minimum Bleed Valves

Quick open minimum bleed valve. Allows minimal bleeding when filling nurse tanks.

Features:

  • 1-1/4” and 1” sizes
  • Stainless steel bonnet, stems and nozzle
  • Rugged ductile iron body
  • Large aluminum hand wheel
  • Knurled coupler for better grip
  • Flat rubber seat for a long lasting leak proof seal
  • Special feature allows the coupling to be removed and repaired in the field. Special tool is required.
Ordering Information
Part Number Inlet Size ACME Size Product Video Product Drawing
A-QOVM-100 1" 1-3/4" - -
A-QOVM-125 1-1/4" 1-3/4"
A-QOVM-125FF  1-1/4"   1-3/4"
Click images to enlarge.
Click product number to view image.
Ready to Purchase? Find a Distributor
Request Information
