C-Series Meters

The C-Series meters offer improved accuracy, greater interchangeability of components, and easier means of setting. Critical metering parts are computer designed and machined to improve accuracy of NH3 application. With only two exceptions, all components are interchangeable between the C-2500 and C-4100 series meters.

NOTE: ALL C-SERIES METER MATICS ARE CALIBRATED WITH CONTINENTAL FITTINGS AT 100# TANK PRESSURE WITH 12 FOOT 1 HOSE, HOSE LINE VALVE AND 1" QUICK DISCONNECT COUPLER. SUBTRACT 10% FROM CHARTS IF USING 1-1/4" QUICK DISCONNECT COUPLER.

NOTE: SETTING FORMULA AS FOLLOWS: TOOLBAR WIDTH IN FEET X SPEED X LBS NITROGEN PER ACRE X .1212 = DIAL SETTING

Ordering Information

Part Number

Inlet

Outlet
Maximum Flow
Capacity

Shutoff Assembly
Repair
Kit
Product Manual
C-2500-RPR 1" MPT 14-1/8" FPT 1000-2500# Nitrogen Per Hour at 100# Tank Pressure Rope Pull A4125-RS

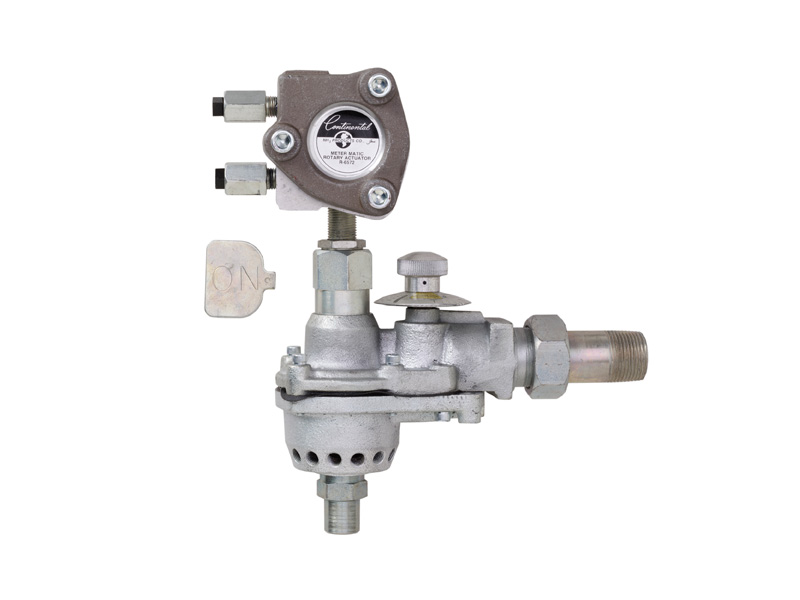

C-2500-6572 1" MPT 14-1/8" FPT 1000-2500# Nitrogen Per Hour at 100# Tank Pressure Hydraulic Actuator A4125-RS
C-2503-RPR 1" MPT 1" FPT 1000-2500# Nitrogen Per Hour at 100# Tank Pressure Rope Pull A4125-RS
C-2503-6572 1" MPT 1" FPT 1000-2500# Nitrogen Per Hour at 100# Tank Pressure Hydraulic Actuator A4125-RS

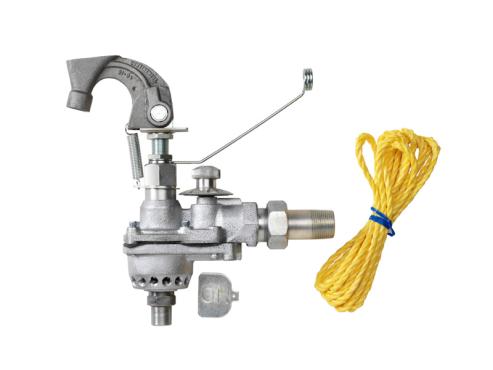

C-4100-RPR 1" MPT 14-1/8" FPT 2000-4200# Nitrogen Per Hour at 100# Tank Pressure Rope Pull A4125-RS

C-4100-6572 1" MPT 14-1/8" FPT 2000-4200# Nitrogen Per Hour at 100# Tank Pressure Hydraulic Actuator A4125-RS

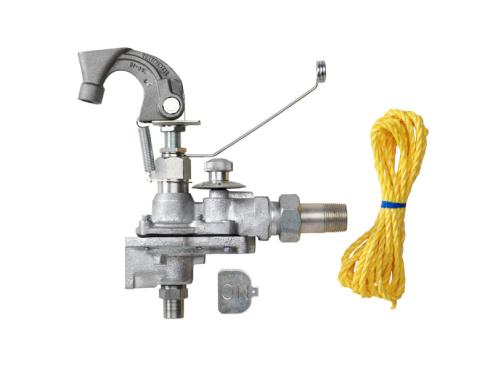

C-4103-RPR 1" MPT 1" FPT 2000-4200# Nitrogen Per Hour at 100# Tank Pressure Rope Pull A4125-RS

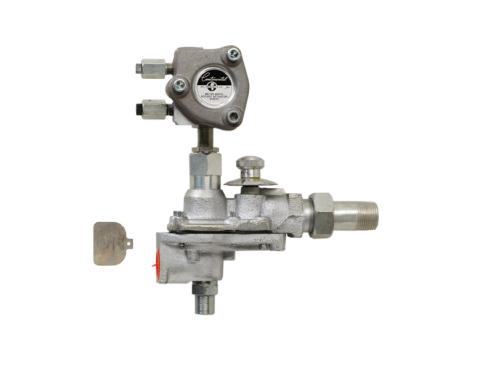

C-4103-6572 1" MPT 1" FPT 2000-4200# Nitrogen Per Hour at 100# Tank Pressure Hydraulic Actuator A4125-RS



Click images to enlarge.
Click product number to view image.
Ready to Purchase? Find a Distributor
Request Information

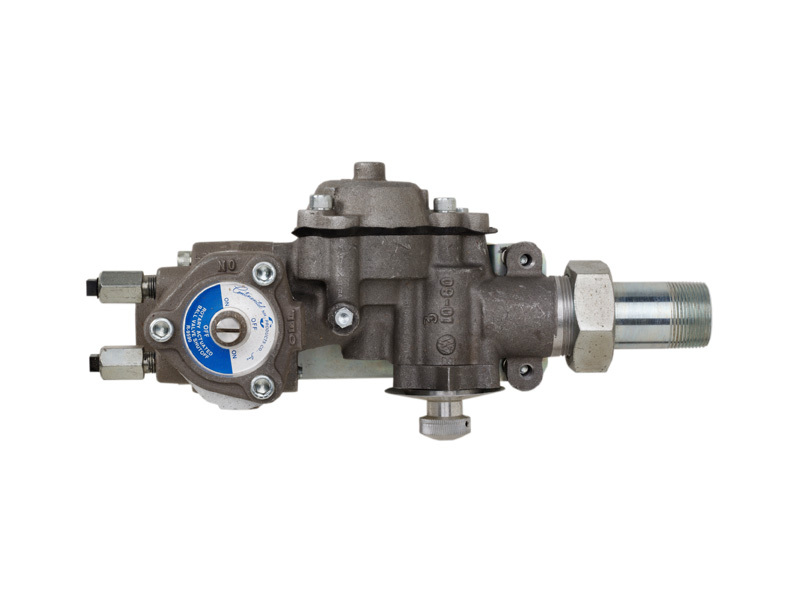

B-9500 Super Flow Meter

The B-9500 Super Flow Meter is designed for applications desiring large tool bars and high capacity NH3 output. The B-9500 features a unique straight-bore flow with virtually no restriction. Other features include a new rotary actuator, single dial setting calibrated in pounds N per hour, heat treated, durable, lightweight aluminum body, universal mounting bracket (adaptable to most meter stands), available in 1" FPT or 1-1/4" MPT inlet.

NOTE: THE B-9500 IS CALIBRATED WITH CONTINENTAL FITTINGS AT 100# TANK PRESSURE WITH 12' 1-1/4" HOSE, HOSE LINE VALVE AND 1-1/4" QUICK DISCONNECT COUPLER.

NOTE: SETTING FORMULA AS FOLLOWS: TOOLBAR WIDTH IN FEET X SPEED X LBS NITROGEN PER ACRE X .1212 = DIAL SETTING

NOTE: IT TAKES BOTH THE B-9500-RS AND THE R-9590-RK TO REPAIR THE ENTIRE METER.

Ordering Information
Part Number Inlet Outlet Maximum Flow Capacity Shutoff Assembly Repair Kit Product Manual
B-9500 1" FPT 1" FPT 6200# Nitrogen Per Hour at 100# Tank Pressure. Rotary Actuator With 1/4" Orificed Connectors. B-9500RS & R-9590-RK
B-9500-M 1-1/4" MPT 1" FPT 6200# Nitrogen Per Hour at 100# Tank Pressure. Rotary Actuator With 1/4" Orificed Connectors. B-9500RS & R-9590-RK
B-9500-B 1-1/4" MPT 1-1/4" FPT 6200# Nitrogen Per Hour at 100# Tank Pressure. Rotary Actuator With 1/4" Orificed Connectors. B-9500RS & R-9590-RK
Click images to enlarge.
Click product number to view image.
Ready to Purchase? Find a Distributor
Request Information
