NH3 (Anhydrous Ammonia) Manifolds Manufacturer
As a NH3 (anhydrous ammonia) manifolds manufacuter, we offer two different types of manifolds. A-MVD and A-SVD addresses uneven distribution of your ammonia by utilizing patented technology to temporarily separate the liquid and the vapor inside the manifold and bring them back together through two separate orifices at the hose barb.
For the budget-conscious farmer we offer the tried-and-true 6006 and 6007 series ductile iron manifolds. Please take a look below for a description of each one. If you don't find what you're looking for please give us a call at 800-537-5642 or click the "Request Information" button to the right.

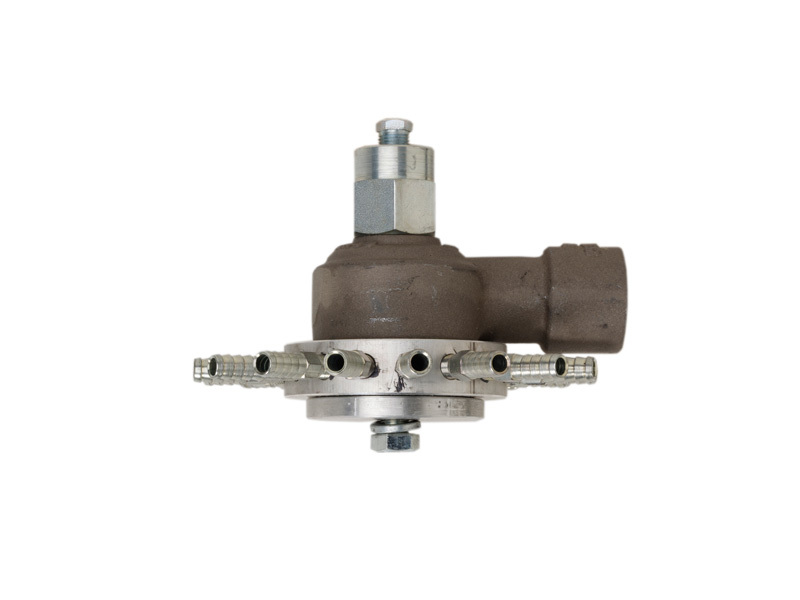

Catalog No.A-MVDW
Catalog No.A-MVD We are very pleased to introduce to you our newly redesigned MVD manifold system. The most important change to the MVD has been the addition of the INLET ORIFICE ACCELERATOR BUSHING. This bushing has allowed us to eliminate the need of having to custom build each manifold to fit each application.You now only have to choose between two 16 outlet manifold sizes, large or small, depending on your output and it will be capable of handling most if not all of your desired application rates with excellent results. The key to this is the INLET ORIFICE ACCELERATOR BUSHING. By installing the accelerator bushing in the inlet of the MVD at the lower ranges we accelerate the ammonia inside the manifold giving us excellent distribution at low and high rates.
Below is a description of the available sizes, rates and part numbers.
Click image to enlarge.
Manifold Size Formula:
Tool bar width in feet X Speed X lbs. N per acre X .1212 = Total lbs N per hour.
Taking your Total lbs N per hour and dividing it by your number of outlets will get you pounds of N per outlet. Then use the chart below to determine which manifold you need.
| Rate Range | Hose Barb Size | Part Number |
| 20 to 150 lbs N per outlet | 3/8" | A-MVD-16A120 |
| 20 to 150 lbs N per outlet | 1/2" | A-MVD-16B120 |
| 150 and up lbs N per outlet | 3/8" | A-MVD-16A201 |
| 150 and up lbs N per outlet | 1/2" | A-MVD-16B201 |
Note: Above rate range is based on 100 lbs of tank pressure. rate change will change at approx. 1/2 percent per pound of tank pressure differential. Example: For 90 lbs of tank pressure, you would reduce the capacity by 5 percent.
Catalog No. A-SVD
Catalog No. A-SVD flow divider is designed to work in conjunction with the A-MVD on large tool bars requiring 3, 4 or 5 manifolds. This type of splitter is generally used in small grain applications. If you are needing large grain applications please see below for the A-BWS series splitters.
Click image to enlarge.
| Rate Range | Number of Outlets | Part Number |
| 3600 lbs N per hour∗ | 3 | A-SVD-3 |
| 4800 lbs N per hour∗ | 4 | A-SVD-4 |
| 6000 lbs N per hour∗ | 5 | A-SVD-5 |
Note: Rate range is maximum flow when using all outlets
Catalog No. A-BWS
A-BWS series flow dividers were designed for higher flows and to be used on sectional shutoff toolbars. This new design gives us the ability to shut down various outlets at any given time and still maintain even distribution of the ammonia. The revolutionary design uses the Bernoulli style principle to separate the liquid and the vapor as it enters the unit pulling the vapor particles into a separate upper chamber while the liquid particles continue straight into the lower chamber. There they exit into the 6, 7, or 8 different outlets where we channel the vapor back into the liquid at the outlet adaptor giving us an even distribution to all of the manifolds.
Click image to enlarge.
| Rate Range | Number of Outlets | Part Number |
| 12,600 lbs N per hour∗ | 6 | A-BWS-6 |
| 14,700 lbs N per hour∗ | 7 | A-BWS-7 |
| 16,000 lbs N per hour∗ | 8 | A-BWS-8 |
Note: Rate range is maximum flow when using all outlets
Catalog No. 6006-6007
6006-6007 series manifolds were designed for the budget-conscious farmer in mind. They are simple in their design but, keep in mind, the distribution on thse manifolds are not near as good as the MVD series.
Click image to enlarge.
| Ordering Information | |||
|---|---|---|---|
| Part Number | Inlet | Outlets and Sizes | Screen |
| A-6006A | 1" | 18-1/8" FPT | - |
| A-6006B | 1" | 14-1/4" FPT | - |
| A-6007C | 1" | 24-1/8" FPT | Yes |
| A-6007D | 1" | 24-1/8" FPT | - |
Note: All 6007 Manifolds are available with a built-in strainer screen.
