NH3 (Anhydrous Ammonia) Electric Control and Shut Off Valves
Continental is proud to introduce a full line of electric control and shut off valves. We use KZ motors together with our ball valves made right here in the united states. No imported ball valves. Includes Raven style connexall wire connections with same cal numbers as Raven control valves for easy retrofitting. Our unique 120 degree control valve uses a speacial control ball with a "V" cut into the ball allowing for an additional 30 degrees of control. This allows our high capacity valves to control at very low rates eliminating oscillation problems that other large control valves have.
Features:
- Full port 1-1/4” through hole
- 120 degree control "V" shaped ball
- KZ motor with standard Raven style connexall connections
- Works with all popular control systems
- 1", 1-1/4" and 1-1/2" models available
*A-CBVT-125-CT CAN ONLY BE USED IN A 2 VALVE SYSTEM, IT CANNOT DOUBLE AS A SHUT OFF VALVE
Ordering Information | |||||
---|---|---|---|---|---|
Part Number | Size | Feature | Product Video | Product Manual |
|
A-BVT-1-SO | 1" | SHUT OFF | - | ||

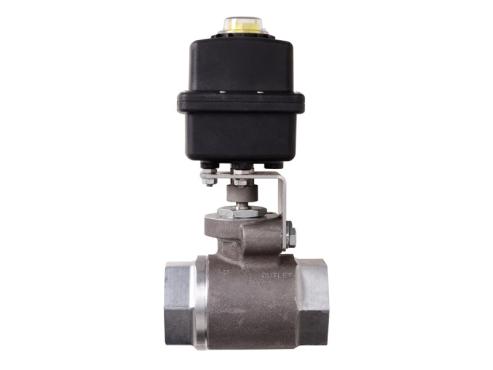

A-BVT-125-SO | 1-1/4" | SHUT OFF | |||
A-BVT-150-SO | 1-1/2" | SHUT OFF | - | - | |

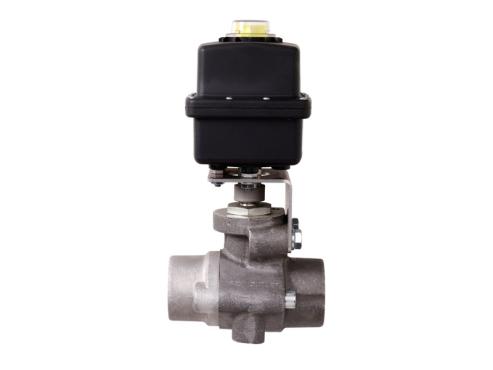

A-BVT-1-CT | 1" | 90 DEGREE CONTROL | - | - | - |
A-BVT-125-CT | 1-1/4" | 90 DEGREE CONTROL | - | - | |
A-BVT-150-CT | 1-1/2" | 90 DEGREE CONTROL | - | - | - |
A-BVT-1-CTF | 1" | 90 DEGREE FAST ON/OFF CONTROL | - | - | |
A-BVT-125-CTF | 1-1/4" | 90 DEGREE FAST ON/OFF CONTROL | - | - | |
A-BVT-150-CTF | 1-1/2" | 90 DEGREE FAST ON/OFF CONTROL | - | - | |
A-CBVT-125-CT | 1-1/4" | 120 DEGREE CONTROL | |||
A-CBVT-150-CT | 1-1/2" | 120 DEGREE CONTROL | - | - |
Click images to enlarge.
Click product number to view image.
