ACME NH3 (Anhydrous Ammonia) Hose Couplings
Acme NH3 (Anhydrous Ammonia) hose couplings are an excellent option when needing to connect and disconnect hoses that don’t need valves compared to the acme thread couplings. Supplied with 2-bolt clamps with hose sizes ranging from 1/2" to 2” and acme threads from 1-3/4” up to 3-1/4”.

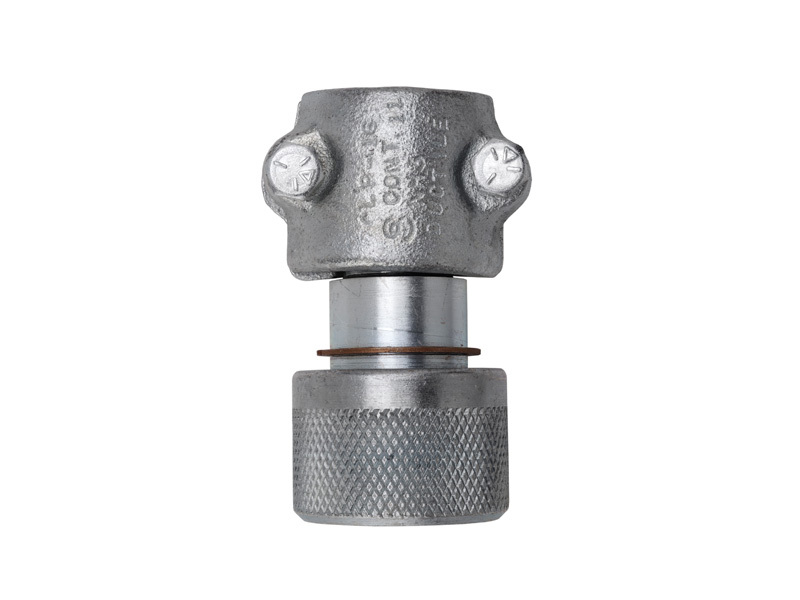

ACME Female Threaded To 2 Bolt hose Clamp Couplings
Click image to enlarge.
Click product number to view product.
Ordering Information
| ACME Female Hoses To 2 Bolt Clamp Coupling Ordering Information | |||||
|---|---|---|---|---|---|
| Catalog Number | Hose Size | ACME Thread | Length | Catalog Number w/Clamps | |
| B-526-B | 1/2" | 1-3/4" | 2-3/4" | B-526-B-CL | |
| B-526 | 3/4" | 1-3/4" | 3" | B-526-CL | |
| B-526-A | 1" | 1-3/4" | 3" | B-526-A-CL | |
| B-526-C | 1-1/4" | 1-3/4" | 3-1/2" | B-526-C-CL | |
| A-528 | 1-1/4" | 2-1/4" | 4-1/2" | A-528-CL | |
| A-552 | 2" | 3-1/4" | 4-1/2" | A-552-CL | |
