New NH3 (Anhydrous Ammonia) Products

Below you will find our current new NH3 (anhydrous ammonia) products and products we will soon be coming out with. We're continually updating our current NH3 (anhydrous ammonia) product line as well as introducing new products. If you have any questions on anything you see (or don't see) here please contact us at 800-537-5642 or email us by clicking on the "Request Information" button on the right.

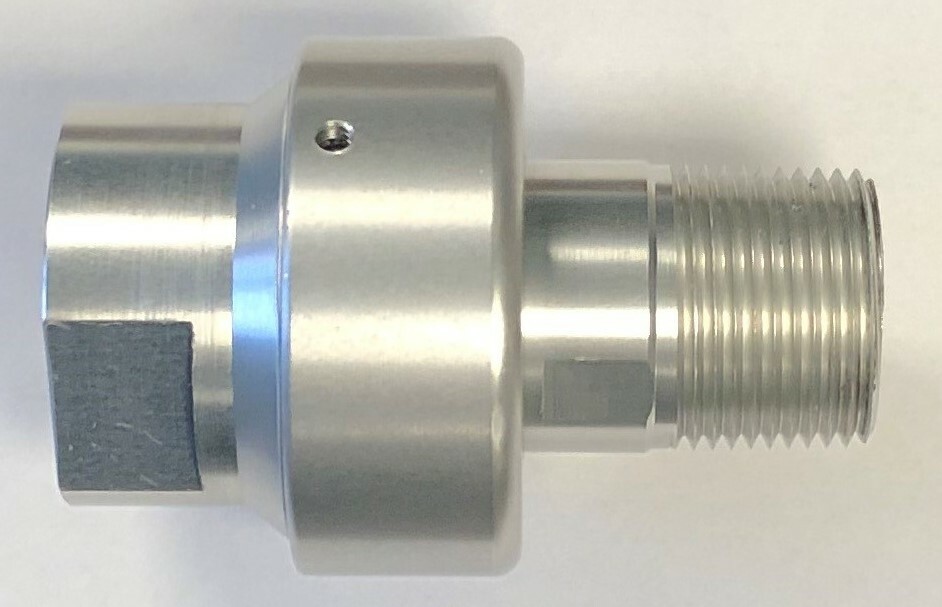

A-577 Locking Collar

threaded satefy couplings

Click image to enlarge.

Locking Collar. Continental NH3 Products is very proud to introduce the revolutionary locking collar for acme fittings. When engaged, it’s locks onto the hex portion of the acme adaptor to prevent the acme coupling from loosening due to twisting or vibration. Currently available for 1” & 1-1/4” pipe threaded couplings with 1-3/4” acme fittings it easily locks to most standard acme fittings and can be installed into any 1” & 1-1/4” valve. 2-1/4” acme will be available in soon. The spring loaded lock collar keeps the collar in place when in use and easily retracts when you need to remove it. It doesn’t take but one time for an acme coupling to come lose in the field to see how beneficial the locking collar can be. You can virtually eliminate the concern of the coupling loosing or even completely unscrewing from the nurse tank. Once you try it we think you will love it.



  • Hardened locking collar
  • Stainless Steel Spring
  • Nickel Plating for long lasting corrosion resistance
  • Knurled surface on locking collar for good gripping
  • Fits standard 1-3/4" & 2-1/4" Continental NH3 acme adaptors and limited compatibility with other manufacturers
  • No special acme adaptor required
  • 1" & 1-1/4" pipe threaded couplings
  • No need for channel locks or pipe wrenches to tighten your acme couplings

A-SF-3000GHY2-KIT NEW

high capacity heat exchanger kit

Click image to enlarge.

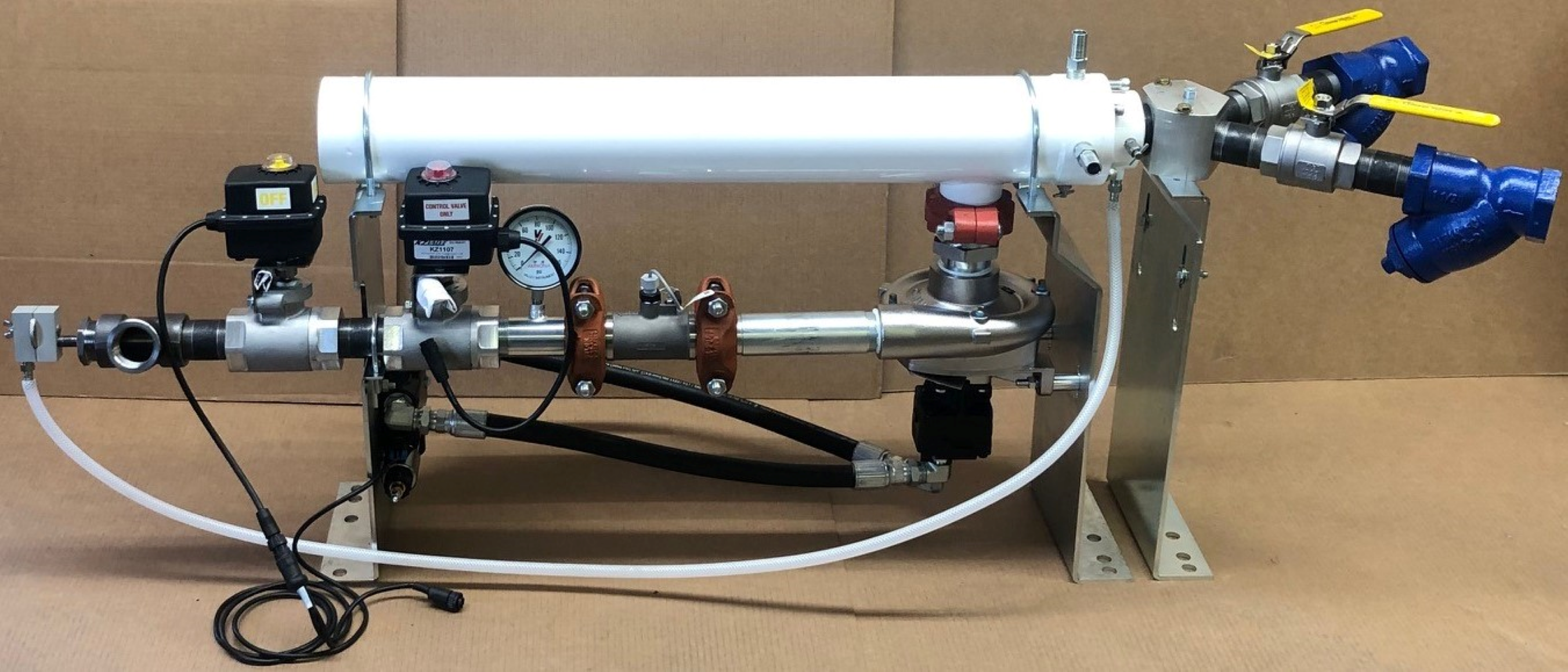

Continental NH3 product is proud to introduce our new high capacity 2” 70 GPM heat exchanger kit. The A-SF-3000GHY2-KIT heat exchanger kit come complete with heat exchangers, mounting brackets, control and shut off valve as well as all the plumbing required to put it all together. All that’s required is a controller and wire harness. Our new kit makes it easier than ever to upgrade your NH3 cooler equipment. Our new systems uses our new 1-1/4” full port 120 degree control valve, A-CBVT-125-CT, that increases your control accuracy by having 120 degrees of turn unlike other 90 degree control valves and being it’s a full port 1-1/4” you can really put on the juice when you need and still be able to handle the lower flow requirements that small grain growers or side dress growers need. The A-SF-3000GHY2-KIT gives you a complete system, easy installation, higher capacity and more accurate control of your NH3

  • Heat exchanger with Y-adaptor, support bracket and 2” y-strainer available separately, A-SF-3000GHY2
  • Mounting brackets and all plumbing included
  • 45 GPM with 1-1/4” hoses at 100 psi and 32 GPM at 50 psi
  • 70 GPM with 1-1/2” hoses at 100 psi and 50 GPM at 50 psi

A-SWV-125 FULL PORT SWING VALVE COUPLER

a-swv-125 full port swing valve

Click image to enlarge.

Continental NH3 is proud to introduce our all new A-SWV-125 swing valve style full port 1-1/4” quick disconnect for tool bars.

No compromises were made with this new coupler. The through hole is a full 1-1/4”. All the components except the ductile iron housing is made of stainless steel, so rust and corrosion are virtually eliminated. No more trouble disconnecting and reconnecting either, our coupler comes with a built in bolt that assists in taking it apart for maintenance. Try our new A-SWV-125, the new standard in tool bar quick disconnects.

  • Full port 1-1/4” through holes
  • Practically no pressure drop
  • Swing valve style checks that swing out of the flow for superior flow characteristics
  • All Stainless Steel, except housing, prevents rust and corrosion
  • Built-in reconnection and disconnection acme bolt
  • Dual 1/4” pipe ports on each side for bleeder valves and hydrostats
  • 35 percent larger than other units
Ordering Information
Part Number Size
A-SWV-125 1-1/4"

A-SF-3000BD-KIT

A-SF-3000BD-KIT

Click image to enlarge.

Continental NH3 product is proud to introduce our new high capacity 1-1/2” 70 GPM duel heat exchanger kit. The A-SF-3000BD-KIT heat exchanger kit come complete with heat exchangers, mounting brackets, control and shut off valve as well as all the plumbing required to put it all together. All that’s required is a controller and wire harness.

Our new kit makes it easier than ever to upgrade your NH3 cooler system. We make it easier on you by assembling the outlet plumbing portion of system and our with unique welded heat exchanger design, that eliminates a lot of the pipe threads involve in other duel cooler systems. Less pipe thread connections means less leaks as well as better flow.

Our new systems uses our new 1-1/4” full port 120 degree control valve, A-CVT-125-CT, that increases your control accuracy by having 120 degree’s of turn unlike other 90 degree control valves and being it’s a full port 1-1/4” you can really put on the juice when you need and still be able to handle the lower flow requirements that small grain growers or side dress growers need. The A-SF-3000BD-Kit gives you a complete system, easy installation, higher capacity and more accurate.

KIT INCLUDES THE FOLLOWING:

  • 70 GPM 1-1/2” Duel welded coolers complete with required fittings
  • Mounting brackets
  • Inlet y-strainers and ball valves
  • Electric control and shut off valves with KZ motors
  • 1-1/2” flow meter
  • All pipe fittings
  • Preassembled for easy installation

A-SF-3000GH-KIT

A-SF-3000GH-KIT

Click image to enlarge.

Continental NH3 product is proud to introduce our new high capacity 1-1/2” 45 GPM heat exchanger kit. The A-SF-3000GH-KIT heat exchanger kit come complete with heat exchangers, mounting brackets, control and shut off valve as well as all the plumbing required to put it all together. All that’s required is a controller and wire harness.

Our new kit makes it easier than ever to upgrade your NH3 cooler equipment. We do all the work by assembling the outlet plumbing portion of system.

Our new systems uses our new 1-1/4” full port 120 degree control valve, A-CVT-125-CT, that increases your control accuracy by having 120 degree’s of turn unlike other 90 degree control valves and being it’s a full port 1-1/4” you can really put on the juice when you need and still be able to handle the lower flow requirements that small grain growers or side dress growers need. The A-SF-3000GH-Kit gives you a complete system, easy installation, higher capacity and more accurate control of your NH3.

KIT INCLUDES THE FOLLOWING:

  • 45 GPM 1-1/2” coolers complete with required fittings
  • Mounting brackets
  • Inlet y-strainers and ball valves
  • Electric control and shut off valves with KZ motors
  • 1-1/2” flow meter
  • All pipe fittings
  • Preassembled for easy installation

1-1/4” and 1-1/2” Extra Flow Tank Valves

A-1406-G AND A-1809-BFV

Click image to enlarge.

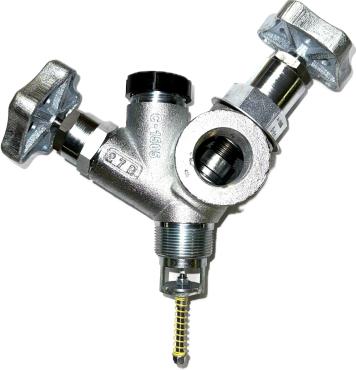

Continental NH3 Products is excited to announce its brand new line of EXTRA FLOW tank valves, the A-1406-G and the A-1809-BFV. The A-1406-G has been has been redesigned with a new excess flow check that is 40 percent bigger than any other 1-1/4” tank valve. Install these valves in your 1000 gallon nurse tanks and we guaranty you’ll go faster than you have ever have before.

And for the larger tanks with 1-1/2” connections we have the A-1809-BFV, its one big freaking valve. This all new valve body has a full port 1-1/2” seat and an all new excess flow check that is 41 percent bigger than anything else out there. The picture above just doesn’t do it justice.

We guaranty you will be impressed or your money back. If you are looking for faster speeds and flow rates then consider giving these valve a shoot. They won’t let you down.

FEATURES:

  • A-1406-G 40 percent larger than other 1-1/4” tank connection valves
  • A-1809-BFV, 41 percent larger than other 1-1/2” tank connection valves
  • Application rate increases as much as 50 percent when used with 1-1/2” hoses and equipment
  • Available in 1-1/2” and 1-1/4” tank connections
  • A-1406-G specifically designed to beinstalled into older 1000 gallon nurse tanks with rate increases of 30 -40 percent
  • 1-1/4” bottom withdrawal connection also available

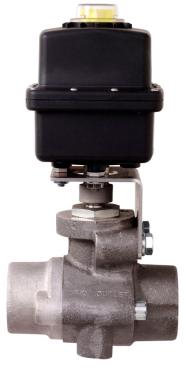

A-CBVT-125-CT

A-CVT-125-CT

Click image to enlarge.

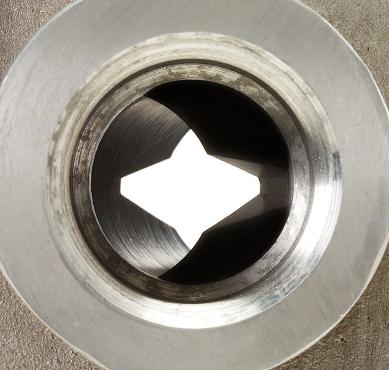

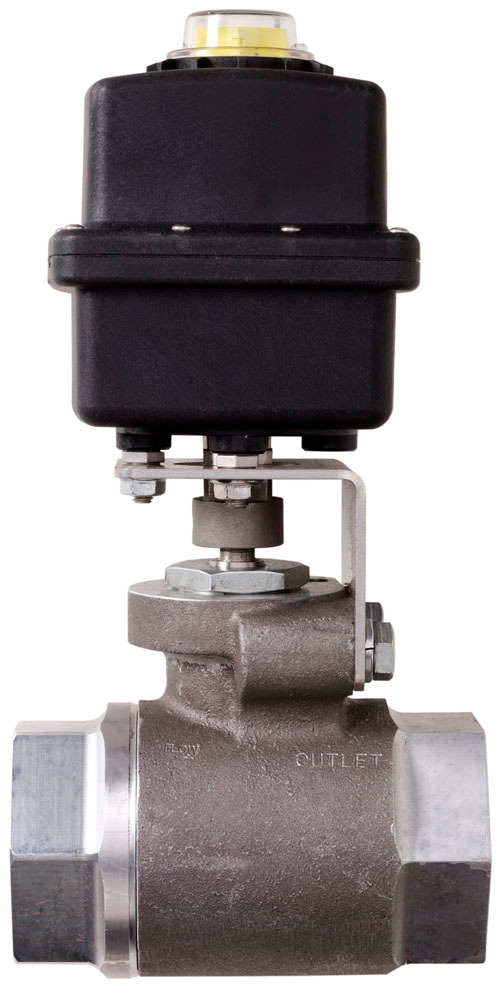

Continental NH3 Products is excited to announce our brand new 1-1/4” 120 degree electric control valve. The most unique feature of this valve is its 118 degree’s of control. Where most control valves us a ball for 90 degrees of turn we use a “V” shaped meter barrel for 118 degrees of turn, that’s 30 degree more turn. This allows for more accurate control and less “oscillation”.

The large 1-1/4” through hole allows for high volume application and the “V” cut in the barrel lets small grain growers and side dress applicators achieve more accurate control on the low end. For higher flow and more accurate control try the new A-CBVT-125-CT.

FEATURES:

  • Full port 1-1/4” through hole
  • 120 degree control
  • KZ motor with standard connections
  • More accurate control
  • Works with all popular control systems
  • “V” shaped control ball

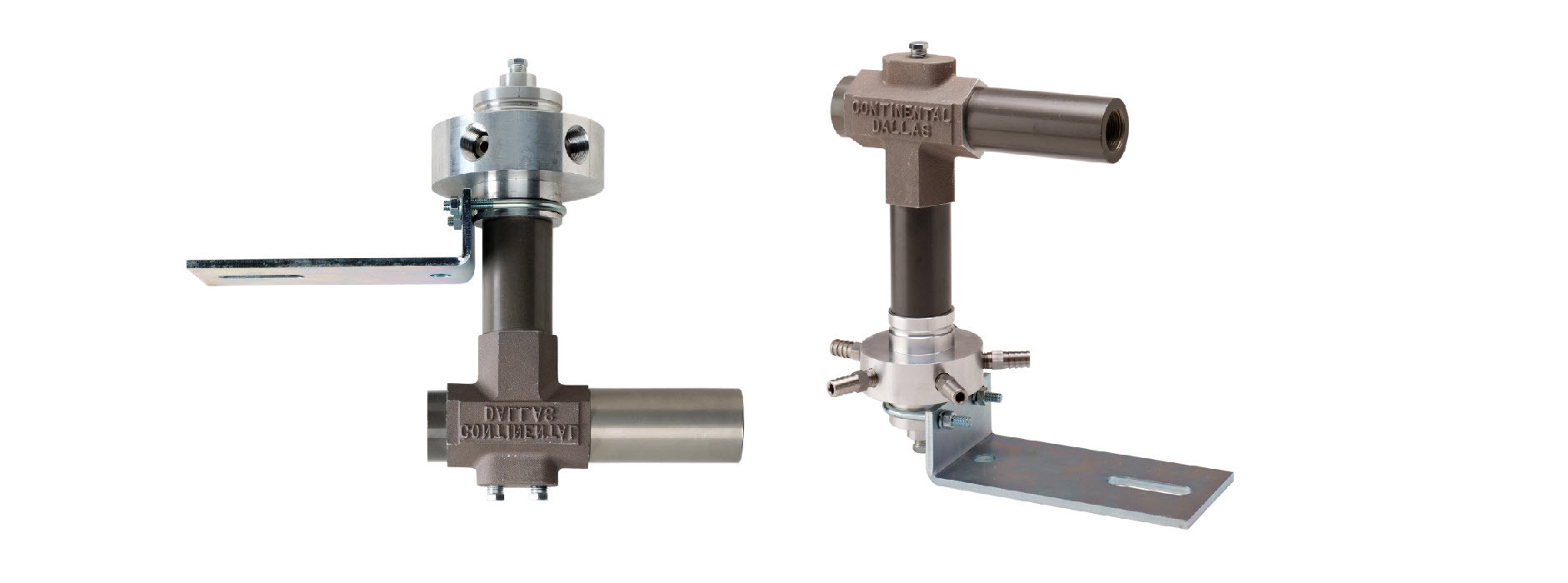

A-360 Series Manifold System

A-360

Click image to enlarge.

Continental NH3 Products is proud introduce our all new even distribution manifold system, the A-360. The A-360 manifold system is a complete turnkey design that includes splitters and manifolds made to your exact application needs.

With accuracies as close as 3 percent to your target rate you can rest easy. Our patented step down injector technology mixes and accelerates the ammonia into an upper chamber, the tee, and the lower manifold chamber. These key features mix the vapor and liquid so each outlet gets an equal amount of both to get an even distribution of the ammonia.

Each manifold is custom built to your needs, no plugging necessary. If you need the best in ammonia distribution look no further. Try our new A-360 manifold system, you won’t be disappointed.

FEATURES:

  • As close as 1 to 3 percent of target rate
  • Includes stainless steel hose barbs on manifolds
  • Manifold outlets available from 3-12 outlets
  • Splitters outlets available from 3-10 outlets
  • Includes mounting hardware
  • Can be mounted upside down
  • Pressure gauge port includedmanifolds and splitters

Ordering information
