NH3 (Anhydrous Ammonia) Hose Barbs
Our stock of NH3 (anhydrous ammonia) hose barbs includes four primary sizes: 1/8” and 1/4" MPT that comes in either 3/8” or 1/2" hose barb. Also available is four standard-size orifice hose barbs. They are available in stainless steel and regular-plated steel.

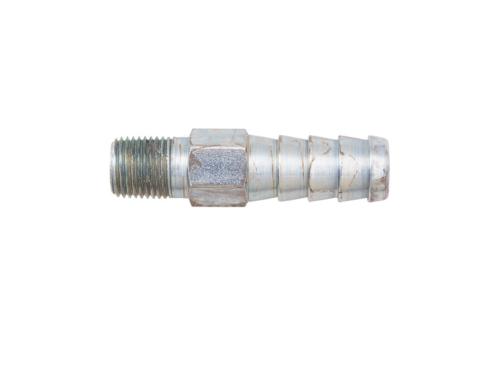

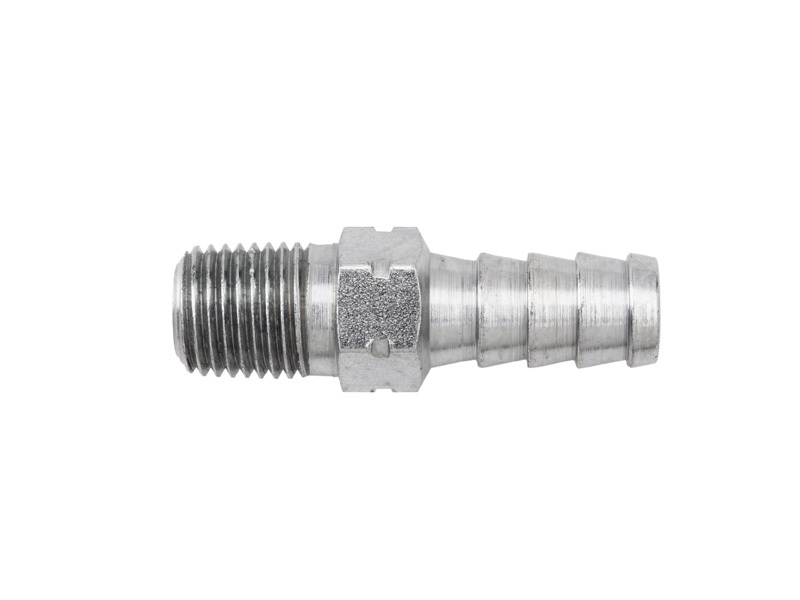

Click image to enlarge.
Click product number to view product.
| Ordering Information | |||
|---|---|---|---|
| Part Number | Thread Size | Hose Size | Description |
| A-1132 | 1/4" NMPT | 3/8" | Hose Barb with Recess |
| A-1132-1 thru 4 | 1/4" NMPT | 3/8" | Hose Barb with Orifice |
| A-1138 | 1/4" NMPT | 1/2" | Hose Barb with Recess |
| A-1138-1 thru 4 | 1/4" NMPT | 1/2" | Hose Barb with Recess |
| A-6132 | 1/8" NMPT | 3/8" | Hose Barb |
| A-6132-1 thru 4 | 1/8" NMPT | 3/8" | Hose Barb with Orifice |
| A-6138 | 1/8" NMPT | 1/2" | Hose Barb |
| A6138-1 thru 4 | 1/8" NMPT | 1/2" | Hose Barb with Orifice |
